Capital investment in a soldering robot carries weight beyond the purchase order. The wrong choice locks in years of throughput ceilings, joint quality limits, and maintenance overhead that a factory floor cannot easily unwind. The right fit pays back through defect reduction, cycle time gains, and consistent joint quality across every shift.
Component-level evaluation surfaces the tradeoffs that vendor datasheets often bury. Iron cartridge design, motion platform accuracy, feeder mechanics, process monitoring, and control software each shape production outcomes in different ways. Buyers who understand the role of each subsystem select platforms that match their actual joint mix and volume targets.
What Is a Soldering Robot?

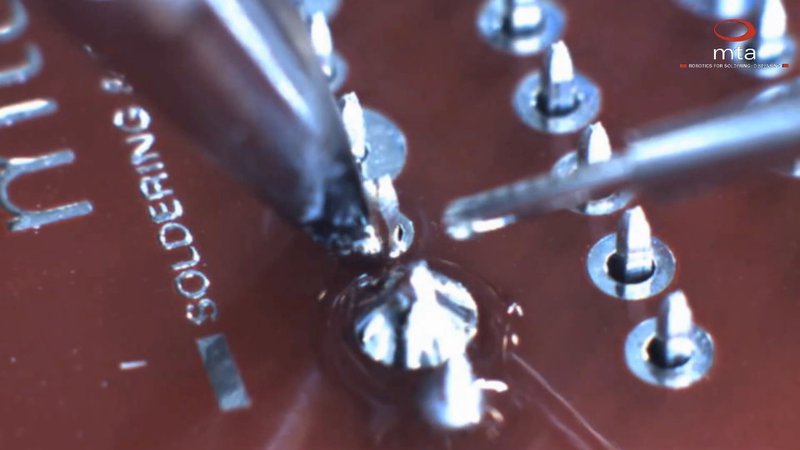

A soldering robot is an automated system that precisely applies heat by iron, laser, or induction, feeds solder wire, and forms joints on electronic assemblies without manual intervention. The platform integrates thermal control, motion axes, wire feed mechanics, and vision or sensor feedback into a coordinated production cell. Applications range from through-hole PCB assembly and connector attachment to sensor packaging and attaching PCBs to over-molded pins in plastic housings. This article will focus on robots that use a traditional soldering iron as the heat source.
1. Thermal Performance in a Soldering Robot
Improved quality and throughput are two primary drivers in automation. Thermal performance sits at the core of every soldering robot evaluation because joint quality relies on tip temperature stability. A slow recovery curve limits throughput regardless of what the motion platform can achieve.
Closed-loop temperature control keeps the tip within a narrow band across long production runs. A thermocouple embedded near the tip feeds real-time data back to the control system. mta robotics does not simply switch the power on and off to hold the temperature between an upper and lower range. It uses an analog power output that delivers more power when needed and less power when overshooting is a risk. As a result, joint-to-joint temperature remains stable even when the robot processes joints with different thermal properties.
Power, measured in watts, is another factor. Power does not determine temperature; it determines temperature stability on high-mass joints. Regardless of the temperature controller’s efforts to sustain a constant temperature, if the heating element does not have enough power, high thermal mass joints can pull the tip temperature down faster than the element can recover. Independent testing has revealed that some heating elements are rated at higher wattage than they perform. The 170W heating elements from mta robotics are tested to operate at 170 watts.
Solder tip geometry also affects heat transfer efficiency to the work. Conductive heat transfer can only occur where the tip and joint touch. The larger the contact patch, the faster heat will move from the element to the joint. mta robotics has published a design guide to help board designers optimize the capabilities of automated soldering. Nevertheless, not all joints can have large solder pads, so a broad selection of tip shapes is crucial to optimizing soldering robot performance.
2. Motion Platform Accuracy and Repeatability Standards
Motion platform performance defines the placement envelope that every soldering robot depends on for joint accuracy. Repeatability figures published on datasheets need context, since bench numbers rarely match sustained production behavior on the floor. Buyers should ask for repeatability data measured under load and after full thermal soak.
Axis architecture drives the accuracy budget across the working envelope of the machine. Linear guides, ballscrews, and servo drives each contribute error that stacks up at the tip during motion. While high-acceleration motion paths are not needed for soldering, robots experience high acceleration between joints. Therefore, rigidity is critical. The gantry, head, wire feeder, and associated brackets must all be rigid enough to hold their position. Flimsy components and brackets can be moved out of position during normal operation and tip changes.
Working envelope size also merits close inspection against actual part geometry across the product mix. A platform sized just above current parts leaves no room for larger assemblies later in the equipment’s service life.
3. Solder Wire Feed Systems and Delivery Consistency
Wire feed mechanics govern how much solder a soldering robot delivers to each joint across the production shift. Feed drive design and wire path geometry each contribute to the volume tolerance the platform can hold. The wire feed system greatly affects joint quality and uptime reliability.
Drive mechanisms use precision motors to control the wire speed and length. The ability to reverse the wire feed is also important because leaving the wire in the pool as it wets creates solder spatter. High-end systems offer feed systems tailored to the solder wire alloy and diameter.
Wire feed location is probably the most important factor in feed repeatability. Remote-mounted wire feeders introduce a myriad of problems that negate any precision the drive system might offer. Long flexible feed tubes allow the wire to buckle as it “bounces” from side to side in the feed tube. How much the wire buckles will change each time the feeder pushes more wire. As the head moves and rotates between joints, the feeder remains static. This movement tugs on the wire, alters the material buckling, and creates more inconsistencies. Long pathways have more friction and require more traction. Drive rollers that perforate the solder in an attempt to add traction, but allow sticky flux to clog the feed tube, creating more jams and cleanup time. Conversely, placing the feeder directly on the head provides a short, straight, low-friction path for the highest repeatability and reliability.
Lastly, the amount of wire fed should be monitored independently of the motor. Just because the encoder tells the system how much the motor turned does not mean the wire moved that much. For example, wire can be jammed on the spool from the manufacturer. Monitoring the linear movement of the solder wire confirms that the wire moved as it was prescribed.
4. Process Monitoring and Control Software in a Soldering Robot
Process monitoring turns a soldering robot from a motion device into a documented production system. Real-time sensor data on temperature, feed length, and dwell time supports traceability requirements that many industries now impose on suppliers. Buyers who evaluate monitoring depth up front avoid retrofit projects later in the equipment’s life.
Sensor coverage should include tip temperature, wire feed length per shot, and joint dwell time at minimum. Optional vision inspection adds coverage on placement accuracy and post-solder joint appearance. Layered sensor data gives quality engineers the inputs needed to correlate process parameters against joint outcomes.
Control software determines how effectively the data translates into action on the floor. Recipe management, statistical process control, and alarm handling all shape day-to-day usability. Meanwhile, integration with plant-level manufacturing execution systems supports the traceability chains that customers audit.
Software architecture also influences long-term flexibility. Open interfaces and documented data schemas allow the platform to work with future inspection tools and analytics stacks. Closed systems limit upgrade paths and often force premature replacement.
Ready to Seek Out the Right Soldering Robot?
Soldering robot investment rewards buyers who evaluate thermal control, motion accuracy, wire feed consistency, and process monitoring as a coordinated system. Component-level scrutiny at the planning stage produces the joint quality, cycle time, and traceability outcomes that justify the capital commitment. Vendor documentation and independent process data give buyers the inputs needed for defensible selection decisions.
mta robotics engineers soldering robot platforms spanning table-top, robotic cell, and selective iron configurations, matched to production volume and joint mix across electronics and industrial assembly. Reach out to our engineering team to find a system built around your joint requirements and throughput targets.
