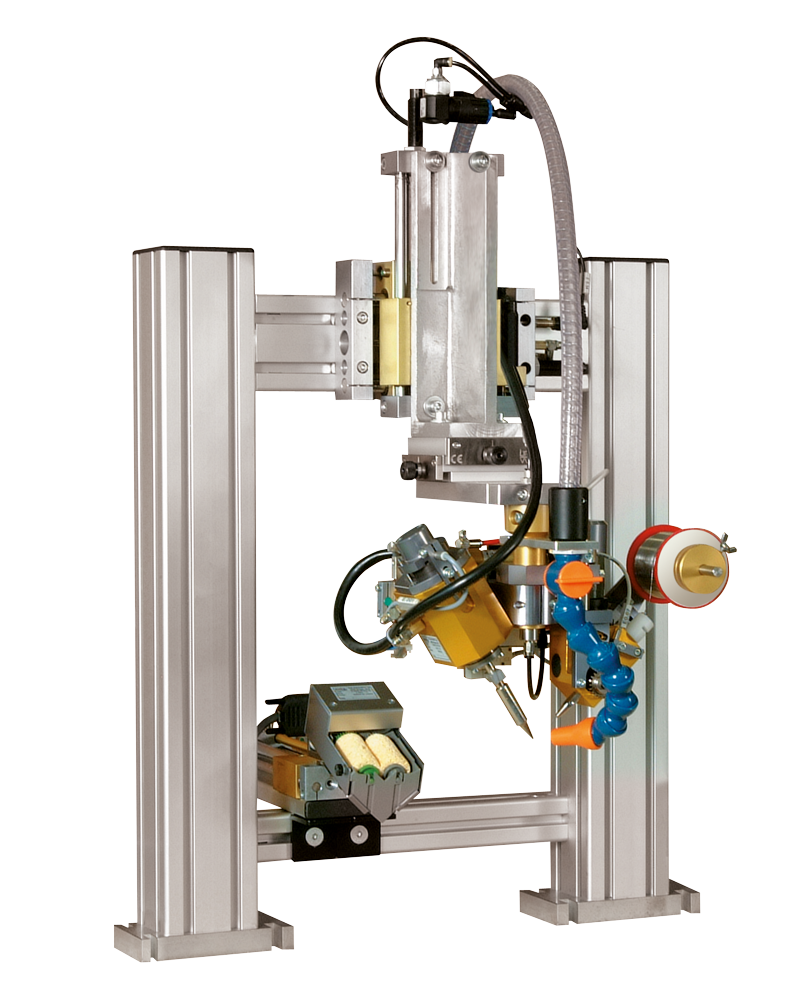

Soldering station for integrator

For applications that do not require the flexibility of a robot, a compact soldering station offers an efficient alternative for integrators. It supports semi or fully automated selective point-to-point soldering operations from above.

Modular slides and standard elements ensure solutions tailored to each customer’s application.

The station can be equipped with any of mta’s soldering heads: soldering iron, induction, microflame; except for the mta MLH45 laser head.

2 reasons to choose the mta soldering station

  1. High flexibility in terms of mechanical and electrical integration.
  2. Reliable turnkey process with controlled and reasonable costs.
Soldering station for integrator

Shipping costs incl.



Each machine is specifically tailored to the customer’s application, but the standard soldering station includes the following equipment:

  • Dedicated aluminum profile frame
  • Pneumatic axes
  • Complete soldering head according to the chosen technology
  • Tip cleaner depending on the chosen head
  • Controller

Options:

  • Specific fixture
  • Fume extraction system depending on the chosen head
  • Monitoring camera
  • Automated sponge humidification system depending on the chosen head
  • Working area  according to the customer’s need
  • Axes  pneumatic
  • Controller  mta controller available upon request
  • Interfaces  via I/O
  • Power supply  without controller 24VDC
  • Power supply  with mta controller 230/115V – 50/60Hz
  • Power consumption  1.1 kVA
  • Air pressure  max. 6 bar
  • Dimensions  from 470 x 630 x 810 mm to specific dimensions
  • Weight  variable from 50 kg to 100 kg


Video

Application examples

Included equipment

Each machine is specifically tailored to the customer’s application, but the standard soldering station includes the following equipment:

  • Dedicated aluminum profile frame
  • Pneumatic axes
  • Complete soldering head according to the chosen technology
  • Tip cleaner depending on the chosen head
  • Controller

Options:

  • Specific fixture
  • Fume extraction system depending on the chosen head
  • Monitoring camera
  • Automated sponge humidification system depending on the chosen head

Specifications

  • Working area  according to the customer’s need
  • Axes  pneumatic
  • Controller  mta controller available upon request
  • Interfaces  via I/O
  • Power supply  without controller 24VDC
  • Power supply  with mta controller 230/115V – 50/60Hz
  • Power consumption  1.1 kVA
  • Air pressure  max. 6 bar
  • Dimensions  from 470 x 630 x 810 mm to specific dimensions
  • Weight  variable from 50 kg to 100 kg
